Universal Upvc Door Hinge

£8⁵⁰

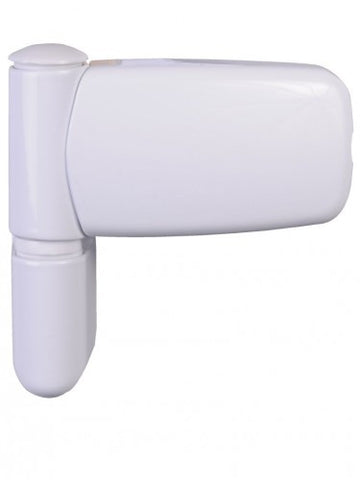

Avocet Triad Flag Hinge

In our opinion the most adaptable repair hinge on the market!!

A superior quality flag hinge from Avocet to suit doors with a frame height of 12 -19mm.. Aesthetically pleasing, the simple allen key adjustment enables door movement to be compensated for without the need of an installation engineer. Non handed, suitable for left or right handed doors.

Available in a choice of 4 attractive colours: gold, chrome, powder coated white and brown

. Hinge to suit rebate heights 12mm - 19mm

Fully adjustable with 3 way adjustment

Non handed - will fit left ot right handed doors.

Endurance tested to 100,000 operations

Load tested to 100kg on 3 hinges

All finishes meet the requirements of BAS EN 1670 - grade 5 (500 hrs salt spray)

Stainless Steel pins

PVD Chrome coating on Gold and Chrome

Powder coating on white, 60 microns minimum coating thickness

Recommended screw fixing size: 9 x 4.8 - 5.0 dia screws (fixing screws are not included)

Dimensions:

Total width across flag hinge: 97mm
Height of Hinge: 95mm (from top to bottom)
Depth of hinge: 36.5mm
