Size:

• Length - 235mm
• Screw Centres - 122mm
• Centres - 92mm
• Bottom Screw to Centre of Euro - 51.5mm

Operation:

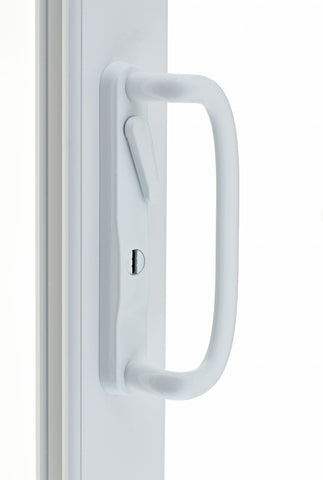

• As the patio door slides across, the locating pin will engage activating the patio lever, once activated, throw the patio lever to engage the locking points

Notes:

• Sold with spindles to fit all common door sizes, and 3 fitting screws.
• Suitable for uPVC, timber & aluminium patio doors.

Features:

• Independently tested and accredited with Secured By Design, PAS024:2012, TS007:2012 & BSI 2 Star Kitemark.
• Manufactured from zinc alloy with steel reinforcement.
• Patented technology prevents screws from shearing or snapping when handle is attacked.
• Chamfered backplate shoulders provide resistance to mole-grips.
• Cylinder is protected with a rotating disc to prevent penetration by a drill.
